Custom Flat-End Tank: Complete Guide to Design, Fitment, Performance, and Custom Styling

A custom flat-end tank is a popular fuel tank upgrade for mini bikes and custom builds, prized for its clean lines, aggressive profile, and versatile fitment. Unlike rounded or bubble-end tanks, flat-end tanks feature squared or straight-cut ends that create a minimalist, race-inspired aesthetic. This design makes the custom flat-end tank a favorite among builders seeking a streamlined look without sacrificing functionality.

This in-depth guide explores construction materials, fuel capacity advantages, fitment considerations, performance impact, customization options, and maintenance best practices for a custom flat-end tank.

What Is a Custom Flat-End Tank?

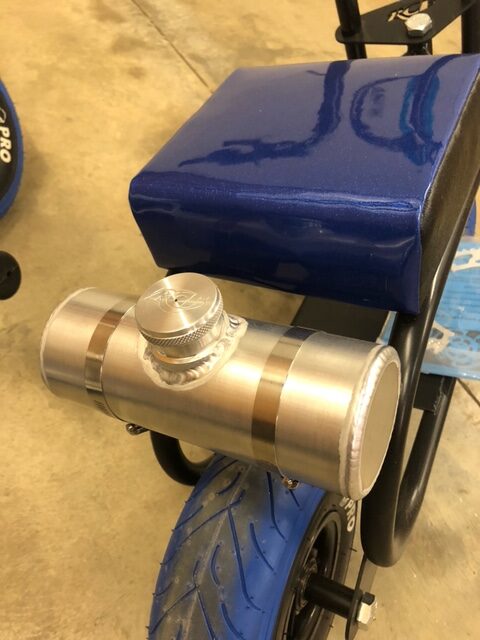

A custom flat-end tank is an aftermarket or fabricated fuel tank designed with straight, flat ends instead of rounded contours. This design maximizes usable tank length while maintaining a compact footprint, making it ideal for both stock and modified mini bike frames.

Key characteristics include:

• Straight, flat tank ends

• Clean, symmetrical appearance

• Efficient internal fuel volume

• Custom fabrication or aftermarket construction

Flat-end tanks are commonly used in performance-oriented and minimalist builds.

Key Benefits of a Custom Flat-End Tank

1. Clean, Aggressive Styling

Flat ends create a sharp, race-ready visual profile.

2. Efficient Fuel Capacity

Straight ends optimize internal volume within a compact design.

3. Versatile Fitment

Easier to align on various frame styles.

4. Balanced Weight Distribution

Uniform shape helps maintain consistent center of gravity.

5. Custom Build Compatibility

Pairs well with performance, café, and stripped-down builds.

6. Visual Simplicity

Allows other components—seat, frame, or exhaust—to stand out.

Materials and Construction Quality

Common Materials

Custom flat-end tanks are typically built from:

• Steel for durability and classic feel

• Aluminum for reduced weight and corrosion resistance

Fabrication Process

• Precision cutting and forming

• TIG or MIG welding

• Pressure testing for leak prevention

• Smoothed seams for paint or polish

High-quality construction ensures long-term reliability and safety.

Fuel Capacity and Performance Impact

Fuel Capacity Advantages

Flat-end tanks maximize usable internal space without excessive width or height.

Performance Considerations

A custom flat-end tank does not directly increase horsepower but improves:

• Riding range

• Fuel efficiency management

• Convenience during extended rides

Proper mounting ensures the added fuel weight does not negatively affect handling.

Fitment and Compatibility

Common Applications

A custom flat-end tank is suitable for:

• Mini bikes

• Custom mini bike frames

• Modified stock frames

• Performance-oriented builds

Mounting Considerations

• Custom or universal mounting brackets

• Clearance for carburetor and engine head

• Proper fuel line routing

Test fitting before final finishing is strongly recommended.

Customization and Finish Options

Finish Choices

• Gloss or matte paint

• Candy colors

• Raw metal with clear coat

• Brushed aluminum finish

Styling Enhancements

• Custom fuel caps

• Pinstriping or logos

• Matching seat or frame accents

A custom flat-end tank offers extensive personalization options.

Custom Flat-End Tank vs. Bubble-End Tank

Both styles serve different visual and functional preferences.

Installation Tips

1. Test Fit First

Confirm alignment before painting or coating.

2. Secure Mounting

Use vibration-resistant hardware and brackets.

3. Check Fuel Flow

Ensure smooth routing from tank to carburetor.

4. Pressure Test

Verify leak-free performance before riding.

5. Balance the Bike

Check handling after installation.

Maintenance and Care

1. Inspect Welds and Seams

Check periodically for leaks or cracks.

2. Clean Regularly

Use gentle cleaners to protect finishes.

3. Protect Against Corrosion

Apply internal coatings if using steel.

4. Monitor Fuel Cap Seal

Ensure tight closure to prevent leaks.

5. Drain Fuel for Storage

Prevents internal corrosion and residue buildup.

Who the Custom Flat-End Tank Is Best For

This fuel tank upgrade is ideal for:

• Custom mini bike builders

• Performance-focused riders

• Minimalist and race-style builds

• Riders seeking clean aesthetics

• Enthusiasts wanting functional customization

It may be unnecessary for riders maintaining a fully stock appearance.

Final Thoughts on the Custom Flat-End Tank

The custom flat-end tank is a versatile, performance-friendly fuel tank upgrade that delivers clean styling, efficient fuel capacity, and broad compatibility. Its sharp profile and minimalist design make it a standout choice for builders who value simplicity and functionality without sacrificing visual impact. Whether used on a custom build or a modified stock mini bike, this tank offers a perfect balance of form and practicality.
